What are the insulation materials for glass furnace?

What are the insulation materials for glass furnace?

Insulation materials for glass furnaces play a crucial role in maintaining high temperatures and minimizing heat loss. The choice of insulation material depends on factors such as the operating temperature of the furnace, energy efficiency requirements, cost considerations, and safety regulations. Here are some common insulation materials used in glass furnaces:

Refractory Bricks: These are traditional materials made from ceramic materials, such as fire clay, high alumina, or silica, which can withstand extremely high temperatures. Refractory bricks are used to line the walls, roof, and floor of the furnace, providing excellent thermal insulation.

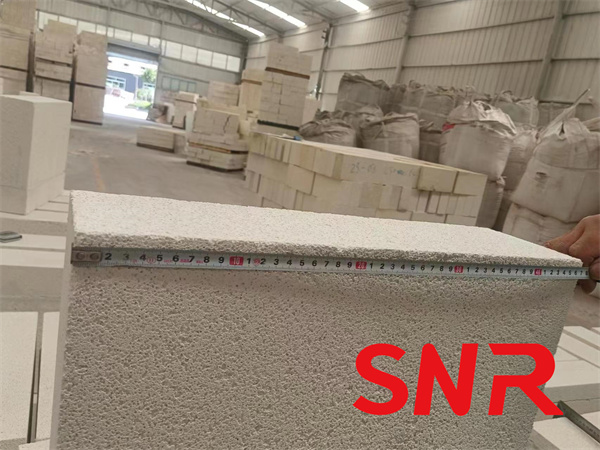

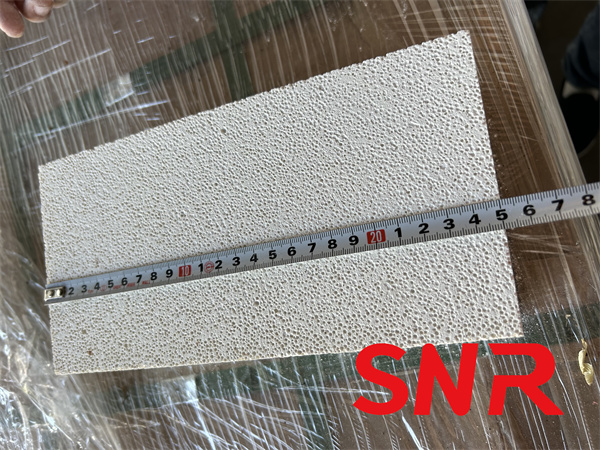

Insulating Firebricks (IFBs): These bricks are lightweight and have lower thermal conductivity than regular refractory bricks. They are effective for temperatures ranging from 2300°F (1260°C) to 3200°F (1760°C) and are commonly used in glass furnace sidewalls and crown.

Ceramic Fiber: Ceramic fiber materials are lightweight, have low thermal mass, and high insulating properties. They come in various forms, such as blankets, modules, boards, and papers. Ceramic fiber is widely used for lining glass furnace walls and roofs due to its excellent heat resistance and insulation capabilities.

Insulating Castables: These are refractory castable materials with low density and good insulating properties. They are often used to line areas where bricks may not be suitable, such as irregular shapes or difficult-to-reach areas.

Vermiculite and Perlite: These natural minerals are expanded and processed to form lightweight insulation materials. They are often used as loose fill or as aggregate in castables to improve insulation.

Calcium Silicate: This material is often used as a backup insulation layer in combination with other refractory materials. It offers good thermal resistance and is relatively easy to install.

Microporous Insulation: Microporous insulation consists of ultra-fine, high-porosity materials, providing excellent thermal performance. It is used in special applications where space is limited, and maximum insulation efficiency is required.

It's important to note that the choice of insulation material will depend on the specific requirements of the glass furnace, and it's essential to consider factors like thermal conductivity, temperature resistance, and overall performance when selecting the appropriate insulation material. Additionally, glass furnace designs and technologies may evolve over time, so it's always a good idea to consult with experts or furnace manufacturers for the most up-to-date recommendations.

Zhengzhou SNR Refractory Co.,Ltd are professional in producing different kinds of refractory materials for glass industry.Any demands,please don't hesitate contact with me.
